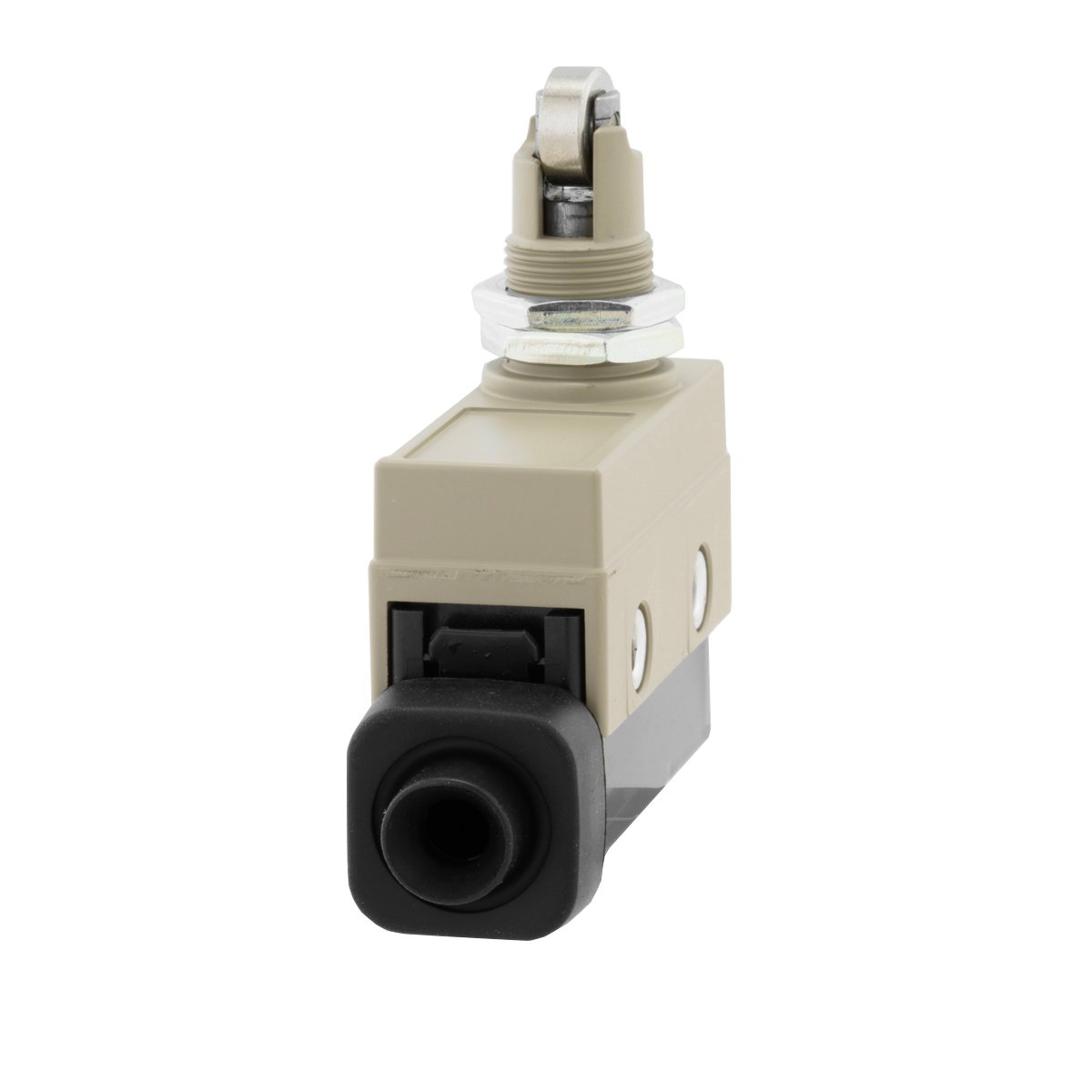

ZC-Q2255 – Kapalı basit switch, panel montajlı makaralı üstten basmalı, SPDT, 15 A

ZC-Q2255

Model No	ZC-Q2255
SKU	ZCQ2255
HS Code	8536.5015.00
Category	Mechanical Sensors and Limit Switches

Download Datasheet (EN)

Description

Kapalı basit switch, panel montajlı makaralı üstten basmalı, SPDT, 15 A

Specifications

Model No	ZC-Q2255
SKU	ZCQ2255
HS CODE	8536.5015.00
DATA SHEET	Datasheet (EN)

Specifications

Product Type	Kapalı basit switch
Current	15 A
Switching function	Other
Rated operation current Ie at AC-15, 230 V	10 A
Rated operation current Ie at DC-13, 230 V	0.03 A
Housing material	Metal
Suitable for safety functions	No
Coating housing	Other
With status indication	No
Type of interface for safety communication	None
Type of electric connection	Other
Explosion safety category for gas	None
Explosion safety category for dust	None
Construction type housing	Cuboid
Degree of protection (IP)	IP67
Forced opening	No
Number of safety auxiliary contacts	0
Type of control element	Plunger
Type of interface	None
Output electronic	No
Rated operation current Ie at AC-15, 125 V	10 A
Rated operation current Ie at DC-13, 125 V	0.05 A
Rated operation current Ie at DC-13, 24 V	5 A
Width sensor	70 mm
Height of sensor	69.4 mm
Length of sensor	21.7 mm
Ambient temperature during operating	-10 u00b0C
Number of contacts as normally closed contact	0
Number of contacts as normally open contact	0
Number of contacts as change-over contact	1
Alignment of the control element	Other
Degree of protection (NEMA)	Other

Technical data supplied by OMRON and classified to ETIM 10.

Features

panel mounted makaralı üstten basmalı
SPDT
