OMRON
SKU: ZXEDR5T
On Order

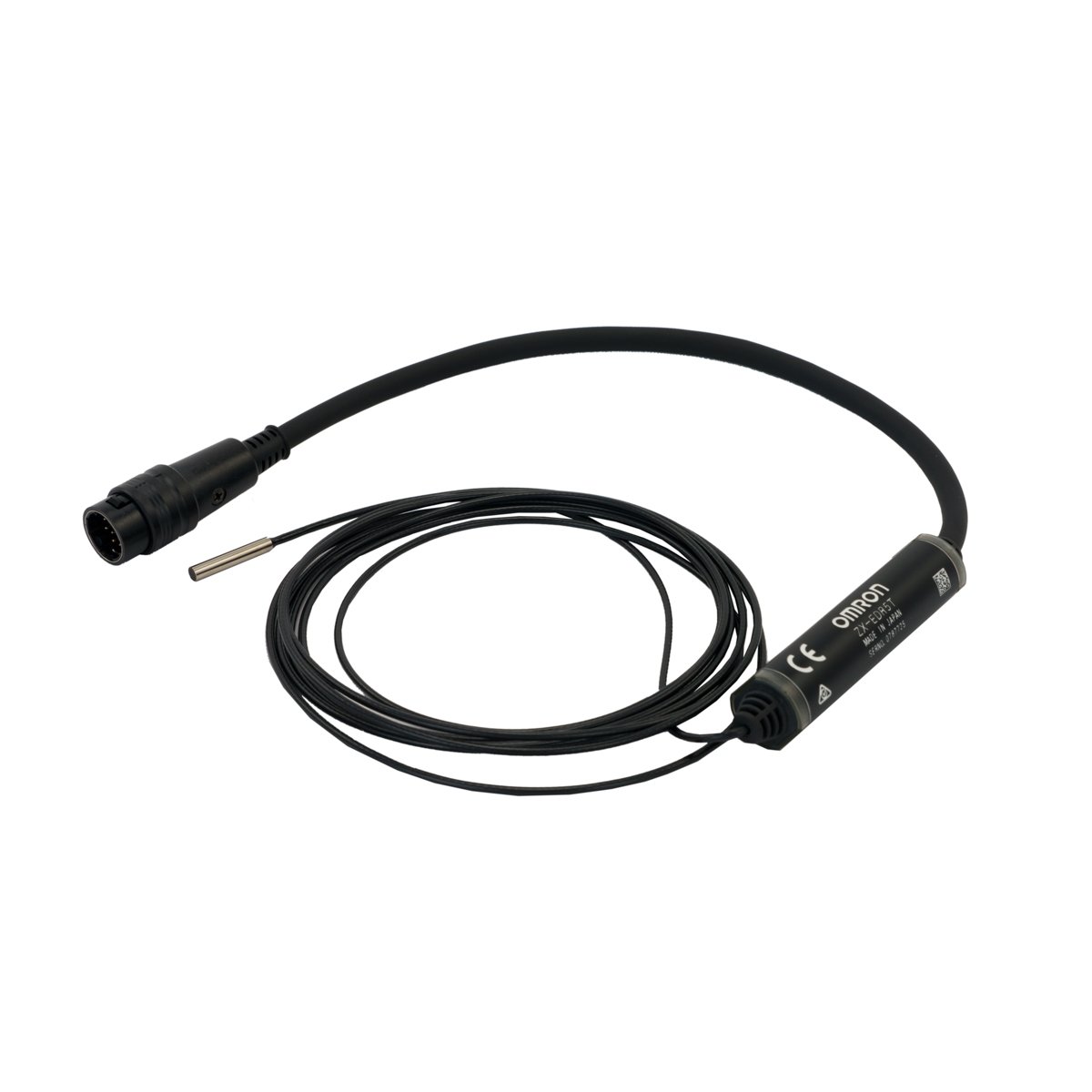

ZX-EDR5T – Inductive proximity sensor head, 3mm dia., Shielded type, 0.5 mm sensing distance (requires ZX-EDA amplifier)
ZX-EDR5T
| Model No | ZX-EDR5T |
|---|---|
| SKU | ZXEDR5T |
| HS Code | 9031.8080.00 |
| Category | Measurement Sensors |
Description
Inductive proximity sensor head, 3mm dia., Shielded type, 0.5 mm sensing distance (requires ZX-EDA amplifier)
Specifications
| Model No | ZX-EDR5T |
| SKU | ZXEDR5T |
| HS CODE | 9031.8080.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Inductive proximity sensor head |
|---|---|
| Sensing Distance | 0.5 mm sensing distance (requires ZX-EDA amplifier) |
| Housing material | Brass |
| Ambient temperature | 0 u00b0C |
| Type of analogy output | 4 mA ... 20 mA |
| Type of electric connection | Cable with connector |
| Operation agent-safety class | Safety class 3 |
| Operating voltage | 12 V |
| Construction type housing | Cylinder plain |
| Limiting frequency | 6666 Hz |
| Relative linearity deflection | 1 % |
| Mechanical mounting condition for sensor | Not flat |
| Supply voltage | 12 V |
| Material active area of sensor | Plastic |
| Material of cable sheath | Polyvinyl chloride (PVC) |
| Degree of protection (IP) | IP65 |
| Diameter sensor | 3 mm |
| Length of sensor | 18 mm |
| Measuring range length | 0 mm |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- 3mm dia.
- Shielded type
