OMRON
SKU: ZX1LD100A8605M
On Order

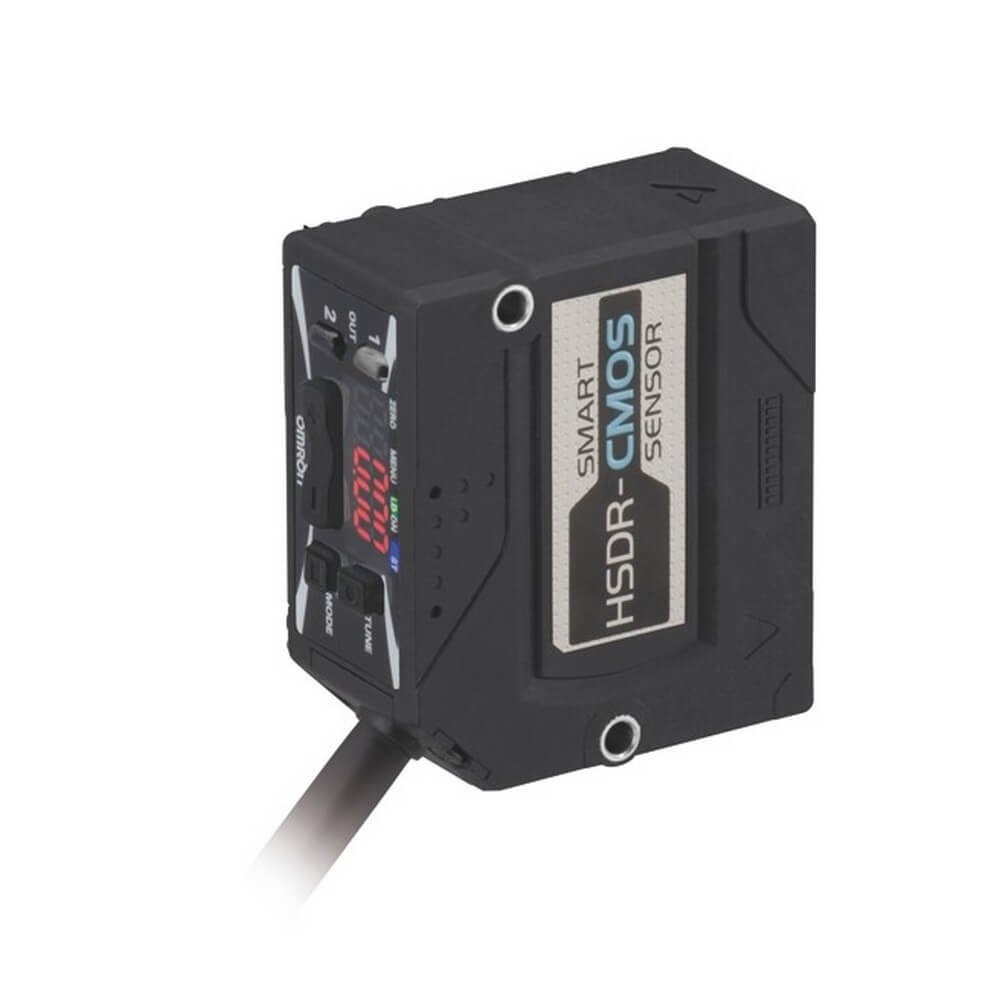

ZX1-LD100A86 0.5M – Laser displacement sensor, 100 +/- 50 mm, PNP, 0,5m pigtail connector
ZX1-LD100A86 0.5M
| Model No | ZX1-LD100A86 0.5M |
|---|---|
| SKU | ZX1LD100A8605M |
| HS Code | 9031.4990.00 |
| Category | Measurement Sensors |
Description
Laser displacement sensor, 100 +/- 50 mm, PNP, 0,5m pigtail connector
Specifications
| Model No | ZX1-LD100A86 0.5M |
| SKU | ZX1LD100A8605M |
| HS CODE | 9031.4990.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Laser displacement sensor |
|---|---|
| Output Type | PNP |
| Voltage type | DC |
| Max. output current | 100 mA |
| Housing material | Plastic |
| Ambient temperature | -10 u00b0C |
| With time function | Yes |
| Switching frequency | 500 Hz |
| Scanning principle | Reflection system |
| Type of analogy output | 4 mA ... 20 mA |
| Type of electric connection | Cable with connector |
| Type of switching output | PNP |
| Type of switch function | Programmable/configurable |
| Signalling interval | 500 Hz |
| Operation agent-safety class | Safety class 3 |
| Setting procedure | Teach-In |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Geometrical resolution | 0.007 mm |
| Standard for interfaces | Analogue |
| Laser protection class | Class 2 |
| Type of light | Laser diode, red light |
| Light dot | 0.09 mmu00b2 |
| Relative linearity deflection | 0.3 % |
| Measuring principle for optical distance measurement | Triangulation |
| Relative repeat accuracy | 0.007 % |
| Supply voltage | 10 V |
| Pre failure notice | No |
| Material of optical surface | Glass |
| Material of cable sheath | Polyvinyl chloride (PVC) |
| Degree of protection (IP) | IP67 |
| AWG-number | 26 |
| Width sensor | 24.1 mm |
| Height of sensor | 52.5 mm |
| Length of sensor | 49 mm |
| Sensing mode | Light switching |
| Measuring range length | 65 mm |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- 100 +/- 50 mm
- 0
- 5m pigtail connector
