OMRON
SKU: ZX 0097F
On Order

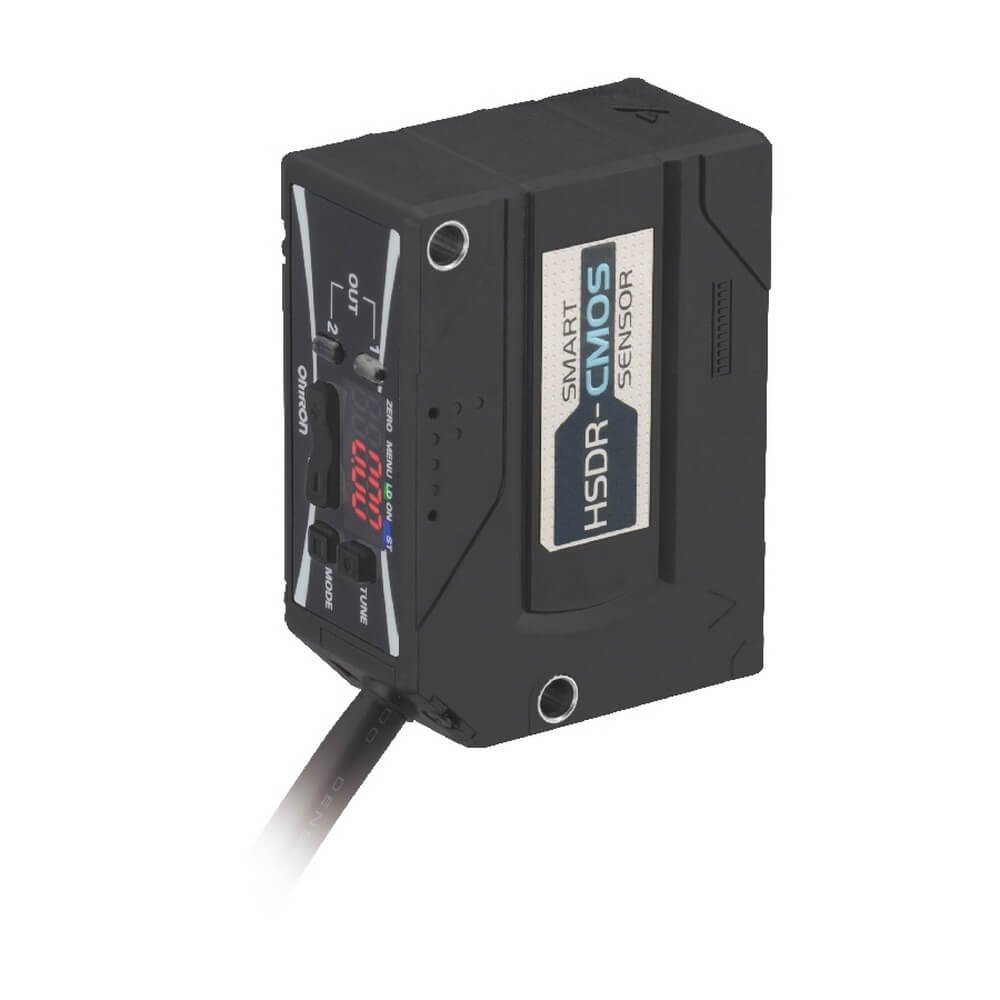

ZX1-LD600A81 10M
| Model No | ZX1-LD600A81 10M |
|---|---|
| SKU | ZX 0097F |
| Category | Measurement Sensors |
Specifications
| Voltage type | DC |
|---|---|
| Max. output current | 100 mA |
| Housing material | Plastic |
| Ambient temperature | -10 u00b0C |
| With time function | Yes |
| Switching frequency | 500 Hz |
| Scanning principle | Reflection system |
| Type of analogy output | 4 mA ... 20 mA |
| Type of electric connection | Cable |
| Type of switching output | PNP |
| Type of switch function | Programmable/configurable |
| Signalling interval | 500 Hz |
| Operation agent-safety class | Safety class 3 |
| Setting procedure | Teach-In |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Geometrical resolution | 0.08 mm |
| Standard for interfaces | Analogue |
| Laser protection class | Class 2 |
| Type of light | Laser diode, red light |
| Light dot | 0.25 mmu00b2 |
| Relative linearity deflection | 1 % |
| Measuring principle for optical distance measurement | Triangulation |
| Relative repeat accuracy | 0.013 % |
| Supply voltage | 10 V |
| Pre failure notice | No |
| Material of optical surface | Glass |
| Material of cable sheath | Polyvinyl chloride (PVC) |
| Degree of protection (IP) | IP67 |
| AWG-number | 26 |
| Width sensor | 27.2 mm |
| Height of sensor | 66 mm |
| Length of sensor | 52 mm |
| Sensing mode | Light switching |
| Measuring range length | 200 mm |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
Get a price Request a quote for ZX1-LD600A81 10M Name, company, email, phone and your quantity — our team replies with cost, lead time and availability. Open form
Pricing is issued per enquiry. Send us the details and our technical team will respond with cost, lead time and availability.
