OMRON
SKU: ZX2LD5005M
On Order

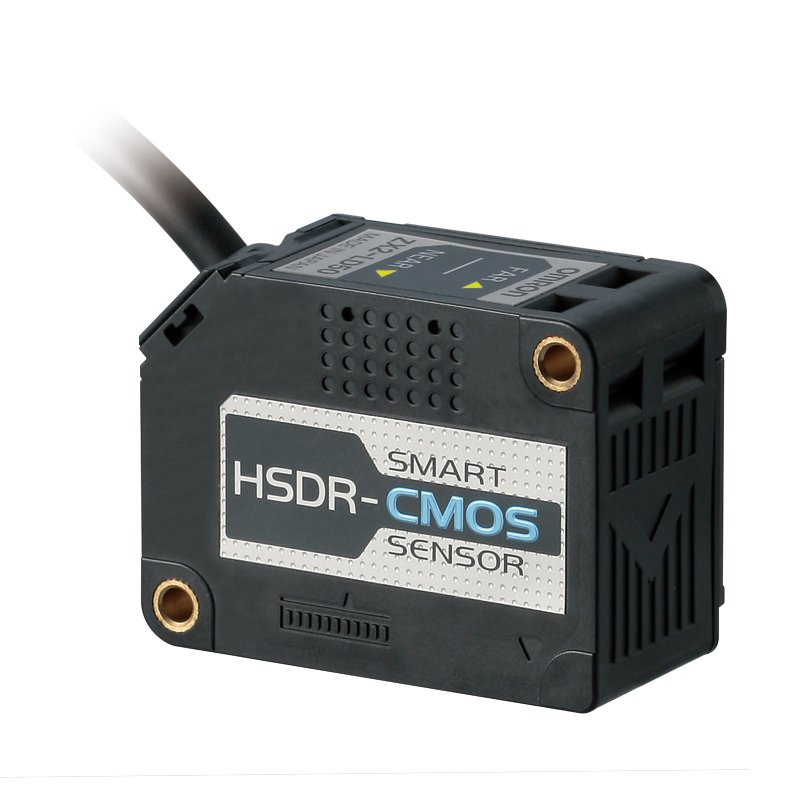

ZX2-LD50 0.5M – lazer mesafe sensörü, CMOS tip, sensör kafası, nokta ışın, 50mm +/-10mm, 1.5µm çözünürlük, 0.5m kablolu
ZX2-LD50 0.5M
| Model No | ZX2-LD50 0.5M |
|---|---|
| SKU | ZX2LD5005M |
| HS Code | 9031.4990.00 |
| Category | Measurement Sensors |
Description
lazer mesafe sensörü, CMOS tip, sensör kafası, nokta ışın, 50mm +/-10mm, 1.5µm çözünürlük, 0.5m kablolu
Specifications
| Model No | ZX2-LD50 0.5M |
| SKU | ZX2LD5005M |
| HS CODE | 9031.4990.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | lazer mesafe sensörü |
|---|---|
| Cable Length | 0.5m cable |
| Voltage type | DC |
| Max. output current | 50 mA |
| Housing material | Plastic |
| Ambient temperature | 0 u00b0C |
| With time function | No |
| Switching frequency | 16600 Hz |
| Scanning principle | Reflection system |
| Type of analogy output | Other |
| Type of electric connection | Cable with connector |
| Type of switching output | Other |
| Type of switch function | Other |
| Signalling interval | 16600 Hz |
| Operation agent-safety class | Safety class 3 |
| Setting procedure | Other |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Geometrical resolution | 0.0015 mm |
| Standard for interfaces | Analogue |
| Laser protection class | Class 2 |
| Type of light | Laser diode, red light |
| Light dot | 0.003 mmu00b2 |
| Relative linearity deflection | 0.1 % |
| Measuring principle for optical distance measurement | Triangulation |
| Relative repeat accuracy | 0.0000025 % |
| Supply voltage | 10 V |
| Pre failure notice | No |
| Material of optical surface | Glass |
| Material of cable sheath | Polyvinyl chloride (PVC) |
| Degree of protection (IP) | IP67 |
| AWG-number | 28 |
| Width sensor | 22.6 mm |
| Height of sensor | 47.5 mm |
| Length of sensor | 35.5 mm |
| Sensing mode | Light switching |
| Measuring range length | 40 mm |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- CMOS tip
- sensor kafası
- nokta ışın
- 50mm +/-10mm
- 1.5µm resolution
