OMRON SKU: CJ1WMAD42OT On Order

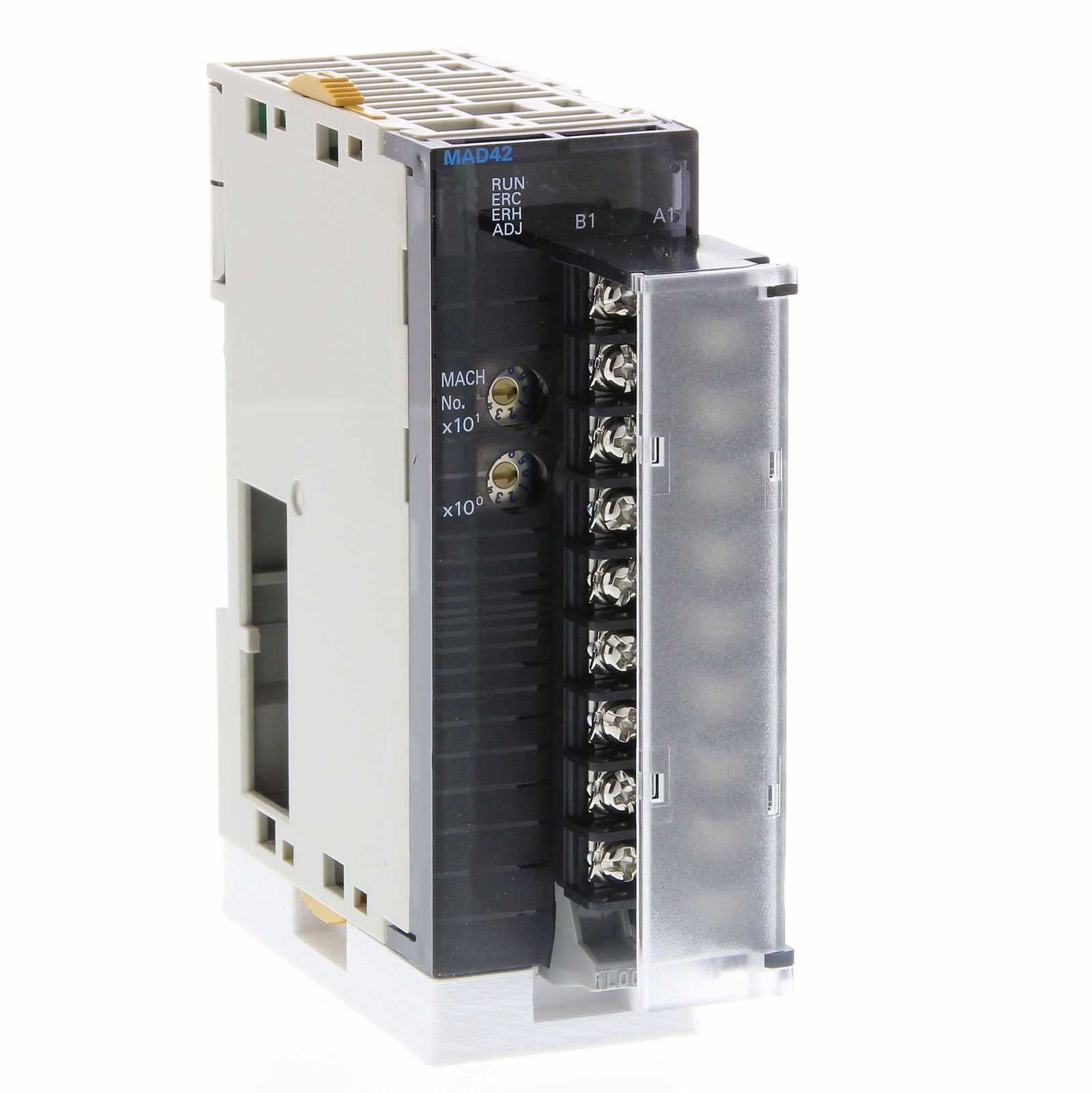

CJ1W-MAD42 – Analog I/O ünitesi, 4x ±10V 0-5V 0-10V 1-5V 4-20mA giriş, 2x ±10V 0-5V 0-10V 1-5V 4-20mA çıkış,çözünürlük 1:4000 ±32000 veya 1:8000 olarak skalalveırılabilir, vida terminal

CJ1W-MAD42

Model No	CJ1W-MAD42
SKU	CJ1WMAD42OT
HS Code	8471.6070.00
Category	Input and Output

Download Datasheet (EN)

Description

Analog I/O ünitesi, 4x ±10V 0-5V 0-10V 1-5V 4-20mA giriş, 2x ±10V 0-5V 0-10V 1-5V 4-20mA çıkış,çözünürlük 1:4000 ±32000 veya 1:8000 olarak skalalveırılabilir, vida terminal

Specifications

Model No	CJ1W-MAD42
SKU	CJ1WMAD42OT
HS CODE	8471.6070.00
DATA SHEET	Datasheet (EN)

Specifications

Product Type	Analog I/O unit
Input	4x ±10V 0-5V 0-10V 1-5V 4-20mA input
Output	2x ±10V 0-5V 0-10V 1-5V 4-20mA output
Width	31 mm
Height	90 mm
Depth	89 mm
Suitable for safety functions	No
Number of analogue inputs	4
Number of analogue outputs	2
Input, current	Yes
Input, voltage	Yes
Input, resistor	No
Input, resistance thermometer	No
Input, thermocouple	No
Input signal, configurable	Yes
Output, current	Yes
Output, voltage	Yes
Output signal configurable	Yes
Resolution of the analogue inputs	13 Bit
Resolution of the analogue outputs	13 Bit
Type of electric connection	Screw connection
Explosion safety category for gas	None
Explosion safety category for dust	None
Appendant operation agent (Ex ia)	No
Appendant operation agent (Ex ib)	No
Performance level according to EN ISO 13849-1	Level a
Analogue inputs configurable	Yes
Analogue outputs configurable	No
SIL according to IEC 61508	None

Technical data supplied by OMRON and classified to ETIM 10.

Features

resolution 1:4000 ±32000 veya 1:8000 olarak skalalveırılabilir
vida terminal
