OMRON
SKU: CJ1WOD231CHN
On Order

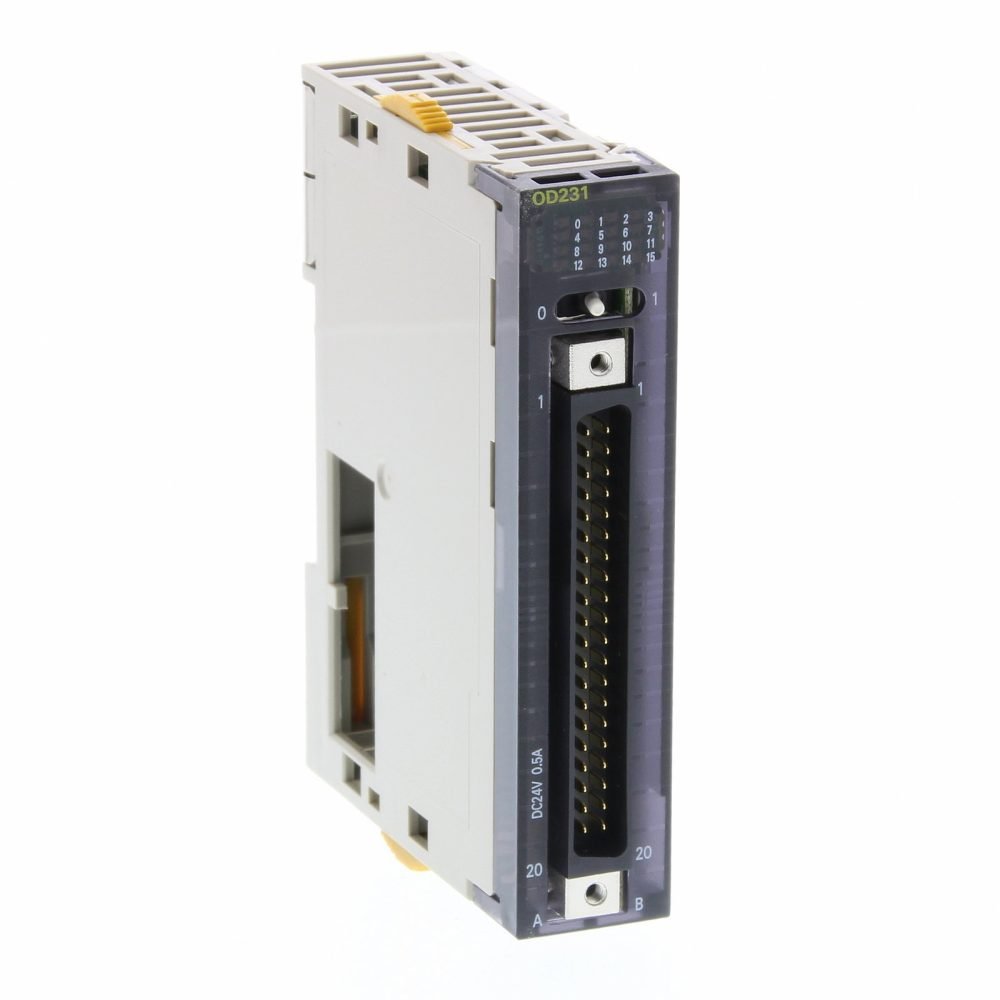

CJ1W-OD231 – Dijital çıkış ünitesi, 32x transistor, NPN, 0.5 A, 12 to 24 VDC, FCN konnektör (dahil değil)
CJ1W-OD231
| Model No | CJ1W-OD231 |
|---|---|
| SKU | CJ1WOD231CHN |
| HS Code | 8471.6070.00 |
| Category | Input and Output |
Description
Dijital çıkış ünitesi, 32x transistor, NPN, 0.5 A, 12 to 24 VDC, FCN konnektör (dahil değil)
Specifications
| Model No | CJ1W-OD231 |
| SKU | CJ1WOD231CHN |
| HS CODE | 8471.6070.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Digital output unit |
|---|---|
| Output Type | NPN |
| Current | 0.5 A |
| Width | 20 mm |
| Height | 90 mm |
| Depth | 66.5 mm |
| Suitable for safety functions | No |
| Number of digital inputs | 0 |
| Number of digital outputs | 32 |
| Voltage type (supply voltage) | DC |
| Type of voltage (input voltage) | DC |
| Redundancy | No |
| Output current | 0.5 A |
| Short-circuit protection, outputs available | No |
| Type of digital output | Transistor |
| Type of electric connection | Flat plug-in connection |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Performance level according to EN ISO 13849-1 | Level a |
| Supply voltage DC | 12 V |
| Permitted voltage at output | 10.2 V |
| Type of output voltage | DC |
| Digital inputs configurable | No |
| Digital outputs configurable | Yes |
| SIL according to IEC 61508 | None |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- 32x transistor
- 12 to 24 VDC
- FCN connector (not included)
