OMRON
SKU: CJ1WSCU22
On Order

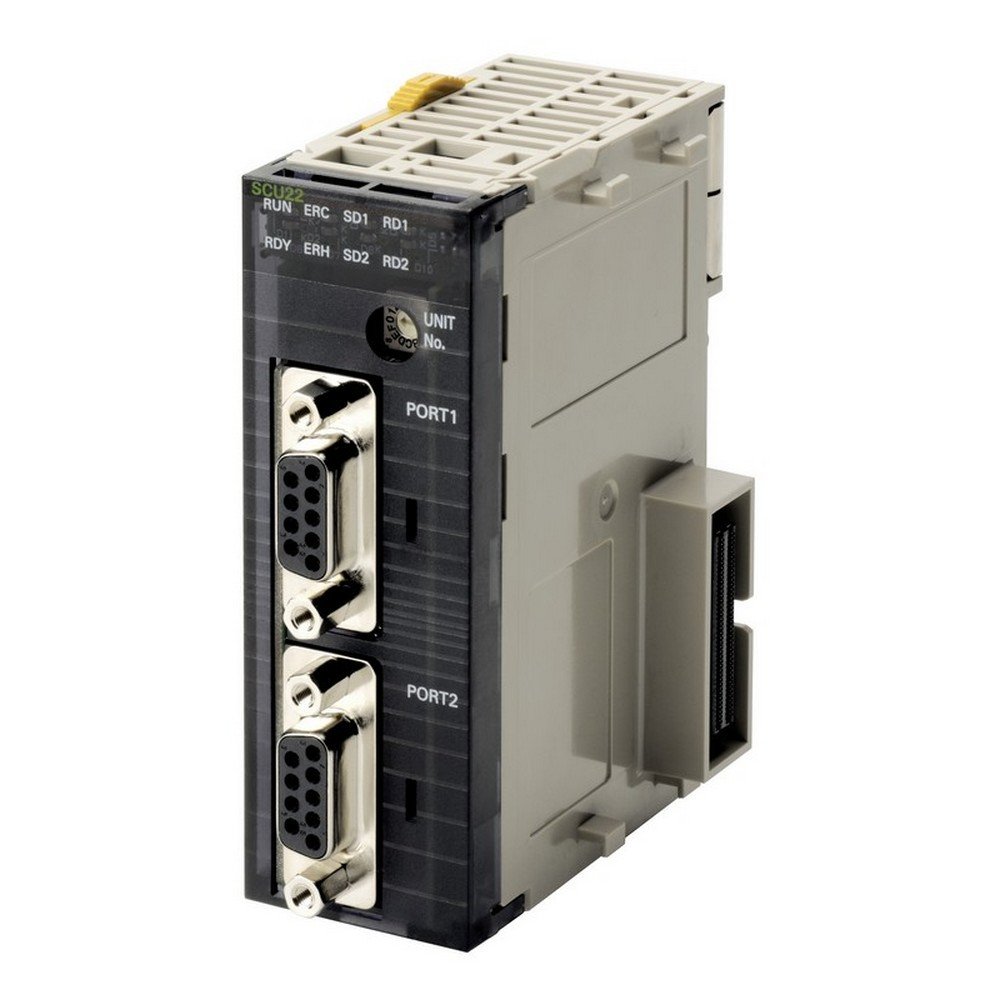

CJ1W-SCU22 – Yüksek hız seri haberleşme ünitesi, 2x RS-232C portu, Protocol Macro, Host Link, 1:N NT Link, No protocol, seri Gateway (CompoWay/F, MODBUS-RTU, MODBUS-ASCII, Host Link), MODBUS RTU Slave, 230 kbps’ye kadar.
CJ1W-SCU22
| Model No | CJ1W-SCU22 |
|---|---|
| SKU | CJ1WSCU22 |
| HS Code | 8471.8000.00 |
| Category | Input and Output |
Description
Yüksek hız seri haberleşme ünitesi, 2x RS-232C portu, Protocol Macro, Host Link, 1:N NT Link, No protocol, seri Gateway (CompoWay/F, MODBUS-RTU, MODBUS-ASCII, Host Link), MODBUS RTU Slave, 230 kbps'ye kadar.
Specifications
| Model No | CJ1W-SCU22 |
| SKU | CJ1WSCU22 |
| HS CODE | 8471.8000.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | High-speed serial communication unit |
|---|---|
| Communication | 2x RS-232C portu |
| Communication 2 | seri Gateway (CompoWay/F, MODBUS-RTU, MODBUS-ASCII, Host Link) |
| Communication 3 | MODBUS RTU Slave |
| Width | 31 mm |
| Height | 90 mm |
| Depth | 65 mm |
| Suitable for safety functions | No |
| Supporting protocol for LON | No |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces RS-232 | 2 |
| Number of HW-interfaces RS-422 | 0 |
| Number of HW-interfaces RS-485 | 0 |
| Number of HW-interfaces serial TTY | 0 |
| Number of HW-interfaces USB | 0 |
| Number of HW-interfaces parallel | 0 |
| Number of HW-interfaces other | 0 |
| With optical interface | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for KNX | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | Yes |
| Redundancy | No |
| Transmission rate | 230 kBit/s |
| With potential separation | No |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Appendant operation agent (Ex ia) | No |
| Appendant operation agent (Ex ib) | No |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| Number of interfaces PROFINET | 0 |
| Number of HW-interfaces wireless | 0 |
| Radio standard Bluetooth | No |
| Radio standard WLAN 802.11 | No |
| IO link master | No |
| Performance level according to EN ISO 13849-1 | Level a |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Type of data transmission | Serial |
| Radio standard GPRS | No |
| Radio standard GSM | No |
| Mobile communications standard 3G (UMTS) | No |
| SIL according to IEC 61508 | None |
| Number of HW-interfaces CAN | 0 |
| Supporting protocol for EtherCAT | No |
| Certified for UL hazardous location class I | No |
| Certified for UL hazardous location class II | No |
| Certified for UL hazardous location class III | No |
| Certified for UL hazardous location division 1 | No |
| Certified for UL hazardous location division 2 | No |
| Certified for UL hazardous location group A (acetylene) | No |
| Certified for UL hazardous location group B (hydrogen) | No |
| Certified for UL hazardous location group C (ethylene) | No |
| Certified for UL hazardous location group D (propane) | No |
| Certified for UL hazardous location group E (metal dusts) | No |
| Certified for UL hazardous location group F (carbonaceous dusts) | No |
| Certified for UL hazardous location group G (non-conductive dusts) | No |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- Protocol Macro
- Host Link
- 1:N NT Link
- No protocol
- 230 kbps'ye kadar.
