OMRON
SKU: D40A1C2.1
On Order

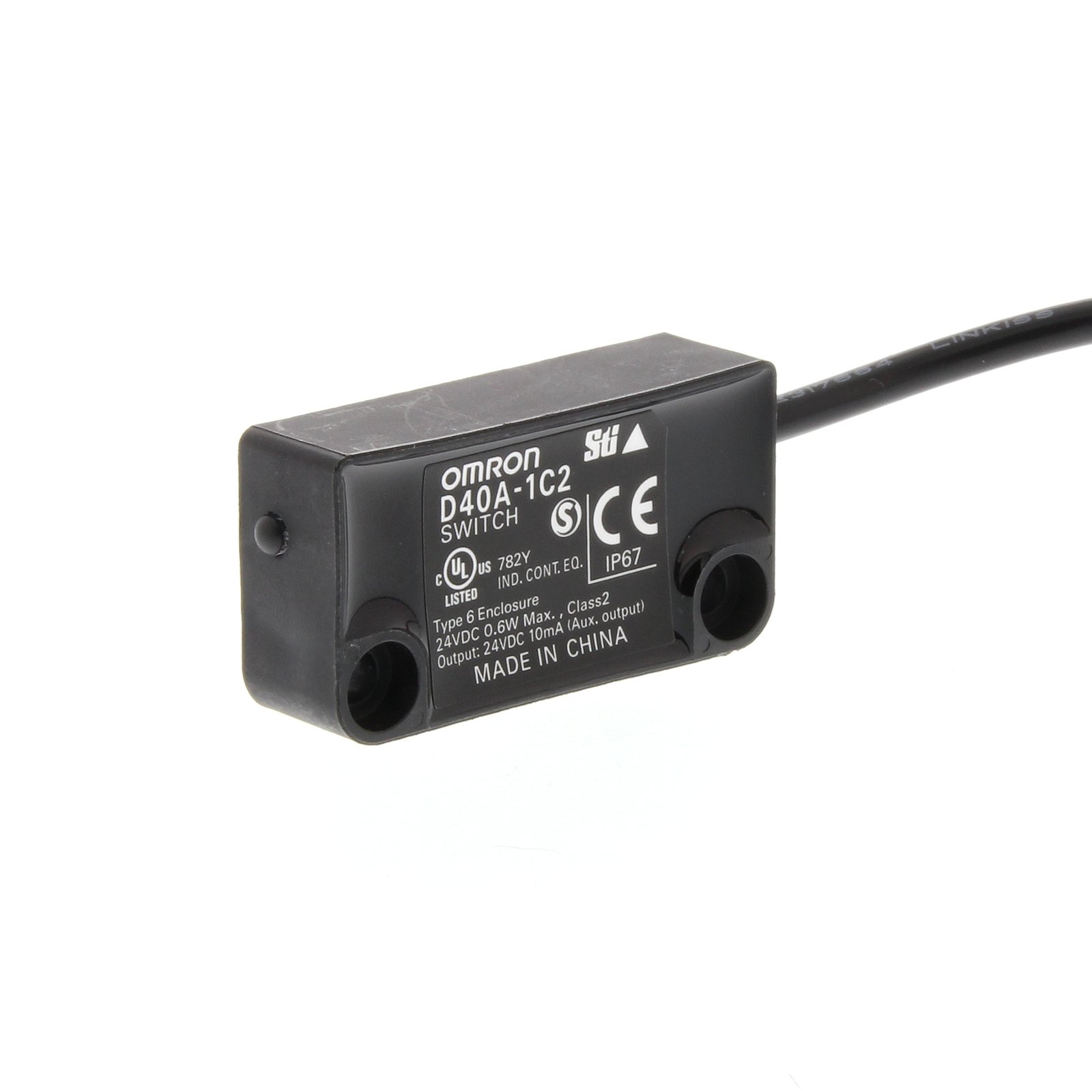

D40A-1C2 – Non-contact door switches, 2m cable
D40A-1C2
| Model No | D40A-1C2 |
|---|---|
| SKU | D40A1C2.1 |
| HS Code | 8536.5015.00 |
| Category | Safety Switches |
Description
Non-contact door switches, 2m cable
Specifications
| Model No | D40A-1C2 |
| SKU | D40A1C2.1 |
| HS CODE | 8536.5015.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Non-contact door switches |
|---|---|
| Cable Length | 2m cable |
| Rated operation current Ie at AC-15, 230 V | 0 A |
| Rated operation current Ie at DC-13, 230 V | 0 A |
| Housing material | Plastic |
| Suitable for safety functions | Yes |
| Coating housing | Plastic-coated |
| With status indication | Yes |
| Type of switching contact | Other |
| Type of interface for safety communication | None |
| Type of electric connection | With cable preassembled |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | IP67 |
| Forced opening | No |
| Number of safety auxiliary contacts | 0 |
| Type of interface | None |
| Rated operation current Ie at AC-15, 125 V | 0 A |
| Rated operation current Ie at AC-15, 24 V | 0 A |
| Rated operation current Ie at DC-13, 125 V | 0 A |
| Rated operation current Ie at DC-13, 24 V | 0.013 A |
| Width sensor | 25 mm |
| Height of sensor | 48 mm |
| Length of sensor | 13 mm |
| Ambient temperature during operating | -10 u00b0C |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
