OMRON
SKU: D40A2C015F
On Order

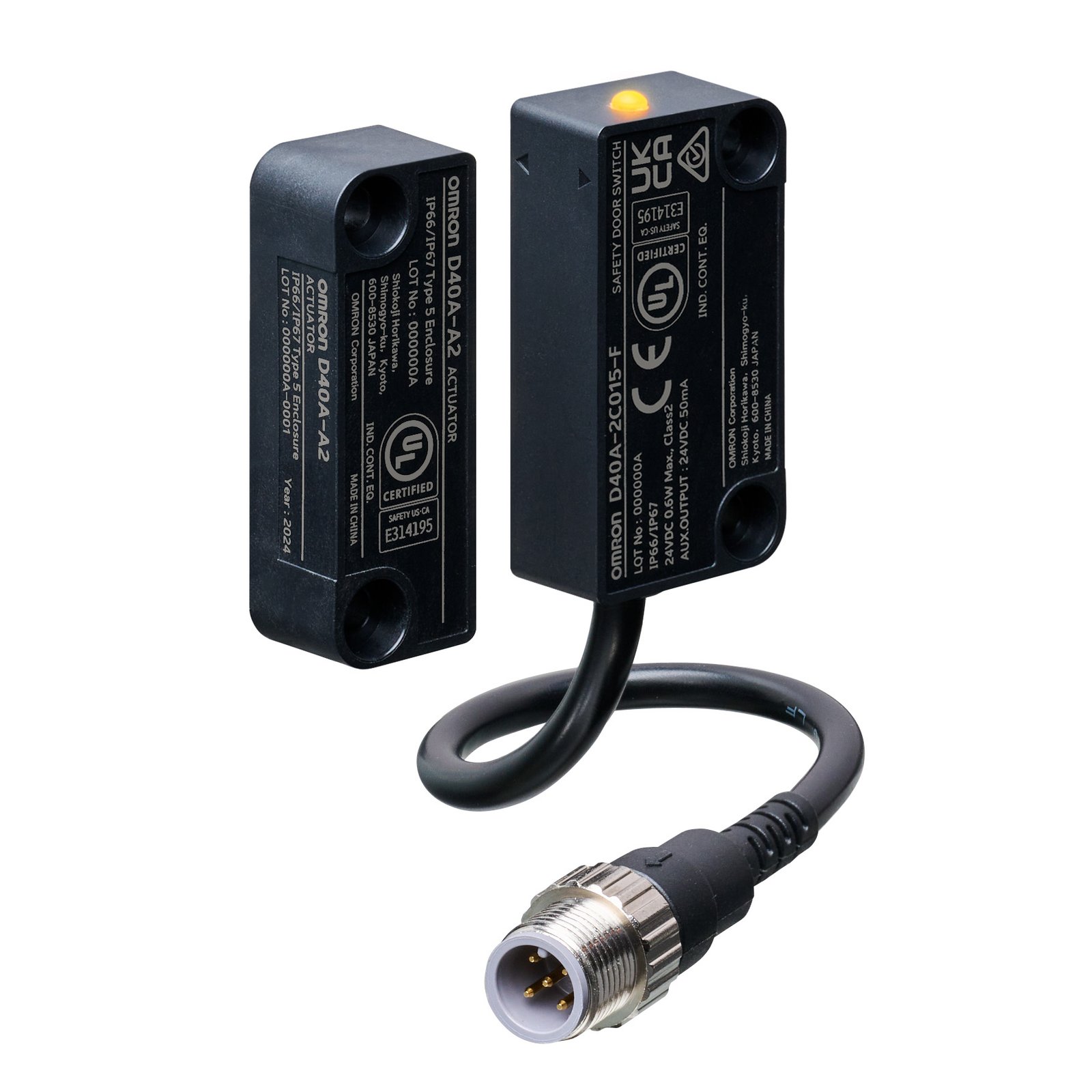

D40A-2C015-F – Non-contact safety door switch, D40A-2, 1 aux output, PNP transistors output, 24 VDC, 50 mA, Pigtail with M12 connector 5-pole
D40A-2C015-F
| Model No | D40A-2C015-F |
|---|---|
| SKU | D40A2C015F |
| HS Code | 8536.5015.00 |
| Category | Safety Switches |
Description
Non-contact safety door switch, D40A-2, 1 aux output, PNP transistors output, 24 VDC, 50 mA, Pigtail with M12 connector 5-pole
Specifications
| Model No | D40A-2C015-F |
| SKU | D40A2C015F |
| HS CODE | 8536.5015.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Non-contact safety door switch |
|---|---|
| Output | 1 aux output |
| Output 2 | PNP transistors output |
| Supply Voltage | 24 VDC |
| Current | 50 mA |
| Rated operation current Ie at AC-15, 230 V | 0 A |
| Rated operation current Ie at DC-13, 230 V | 0 A |
| Housing material | Plastic |
| Suitable for safety functions | Yes |
| Coating housing | Other |
| With status indication | Yes |
| Type of switching contact | Other |
| Type of interface for safety communication | None |
| Type of electric connection | Connector M12 |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | IP66/IP67 |
| Forced opening | No |
| Number of safety auxiliary contacts | 0 |
| Type of interface | None |
| Rated operation current Ie at AC-15, 125 V | 0 A |
| Rated operation current Ie at AC-15, 24 V | 0 A |
| Rated operation current Ie at DC-13, 125 V | 0 A |
| Width sensor | 13 mm |
| Height of sensor | 50.9 mm |
| Length of sensor | 25 mm |
| Ambient temperature during operating | -25 u00b0C |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- D40A-2
- Pigtail with M12 connector 5-pole
