OMRON
SKU: F3STGRNMHR2105
On Order

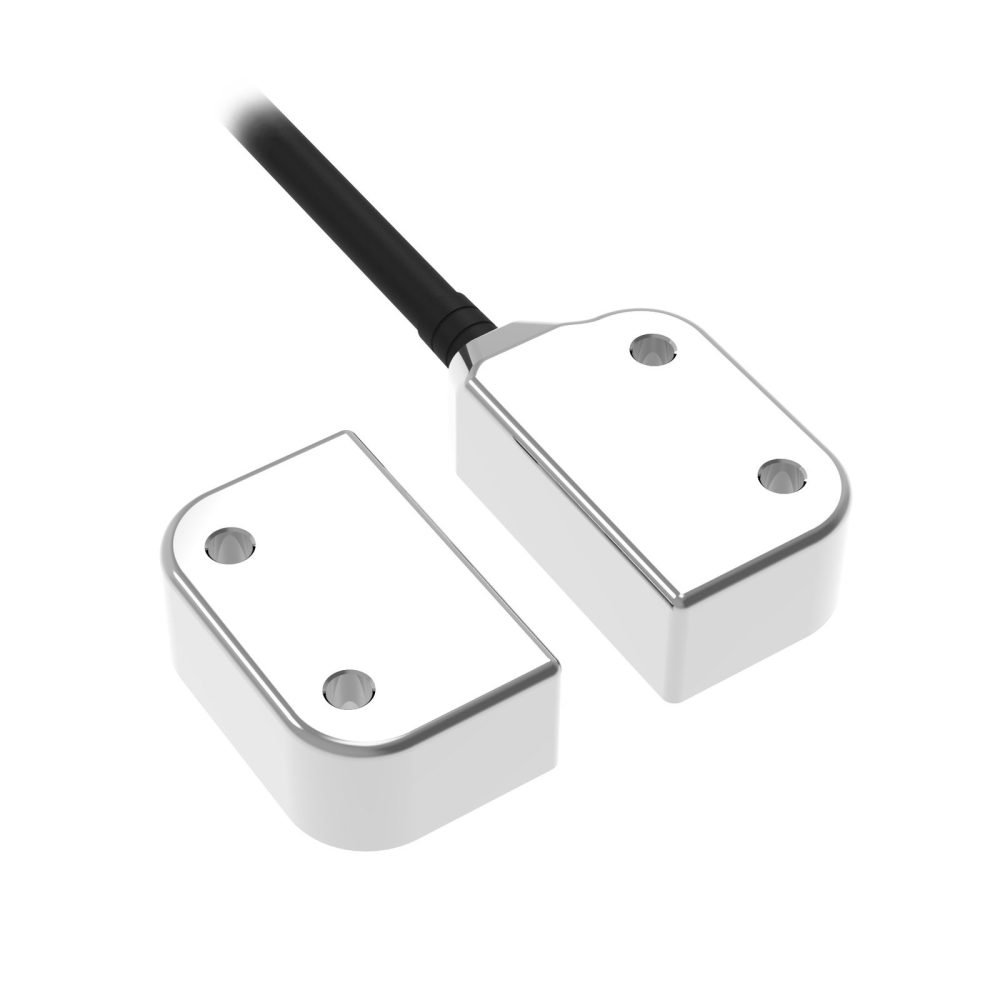

F3S-TGR-NMHR-21-05 – Güvenlik temassız kapı switchi, reed, minyatür paslanmaz çelik hijyenik ortama uygun, 2NC+1NO, 5m kablo
F3S-TGR-NMHR-21-05
| Model No | F3S-TGR-NMHR-21-05 |
|---|---|
| SKU | F3STGRNMHR2105 |
| HS Code | 8536.5005.00 |
| Category | Safety Switches |
Description
Güvenlik temassız kapı switchi, reed, minyatür paslanmaz çelik hijyenik ortama uygun, 2NC+1NO, 5m kablo
Specifications
| Model No | F3S-TGR-NMHR-21-05 |
| SKU | F3STGRNMHR2105 |
| HS CODE | 8536.5005.00 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Safety non-contact door switch |
|---|---|
| Cable Length | 5m cable |
| Rated operation current Ie at AC-15, 230 V | 0.5 A |
| Housing material | Metal |
| Suitable for safety functions | Yes |
| Coating housing | Other |
| With status indication | No |
| Type of switching contact | Other |
| Type of interface for safety communication | None |
| Type of electric connection | With cable preassembled |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | Other |
| Forced opening | No |
| Number of safety auxiliary contacts | 0 |
| Type of interface | None |
| Rated operation current Ie at DC-13, 24 V | 0.2 A |
| Width sensor | 26 mm |
| Height of sensor | 13 mm |
| Length of sensor | 45 mm |
| Ambient temperature during operating | -25 u00b0C |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- reed
- minyatür stainless steel hijyenik ortama uygun
- 2NC+1NO
