OMRON
SKU: AA038385A
On Order

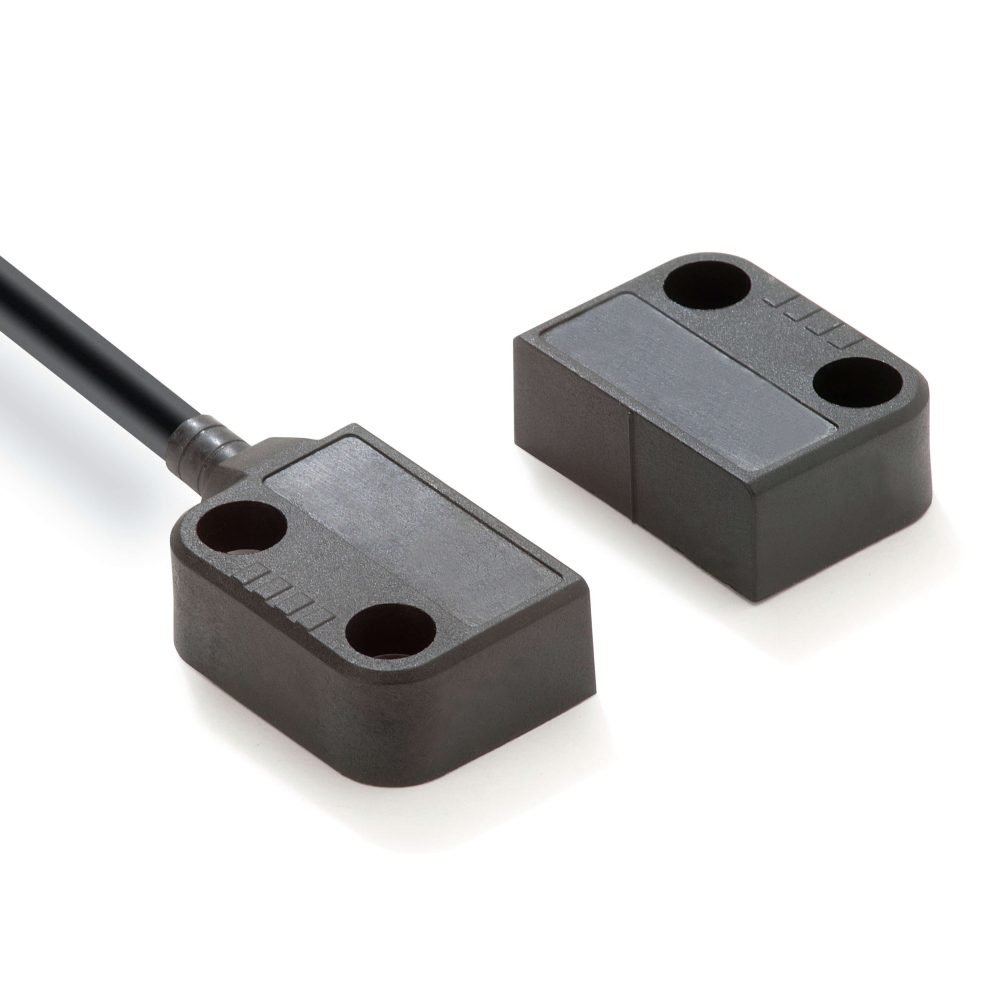

F3S-TGR-NMPC-21-M1J8-R
| Model No | F3S-TGR-NMPC-21-M1J8-R |
|---|---|
| SKU | AA038385A |
| Category | Safety Switches |
Specifications
| Rated operation current Ie at AC-15, 230 V | 0 A |
|---|---|
| Rated operation current Ie at DC-13, 230 V | 0 A |
| Housing material | Plastic |
| Suitable for safety functions | Yes |
| Coating housing | Other |
| With status indication | Yes |
| Type of switching contact | Other |
| Type of interface for safety communication | None |
| Type of electric connection | Connector M12 |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | IP67 |
| Forced opening | No |
| Number of safety auxiliary contacts | 0 |
| Type of interface | None |
| Rated operation current Ie at AC-15, 125 V | 0 A |
| Rated operation current Ie at AC-15, 24 V | 0 A |
| Rated operation current Ie at DC-13, 125 V | 0 A |
| Rated operation current Ie at DC-13, 24 V | 0.2 A |
| Width sensor | 26 mm |
| Height of sensor | 13 mm |
| Length of sensor | 41 mm |
| Ambient temperature during operating | -25 u00b0C |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
Get a price Request a quote for F3S-TGR-NMPC-21-M1J8-R Name, company, email, phone and your quantity — our team replies with cost, lead time and availability. Open form
Pricing is issued per enquiry. Send us the details and our technical team will respond with cost, lead time and availability.
