OMRON
SKU: AA020788C
On Order

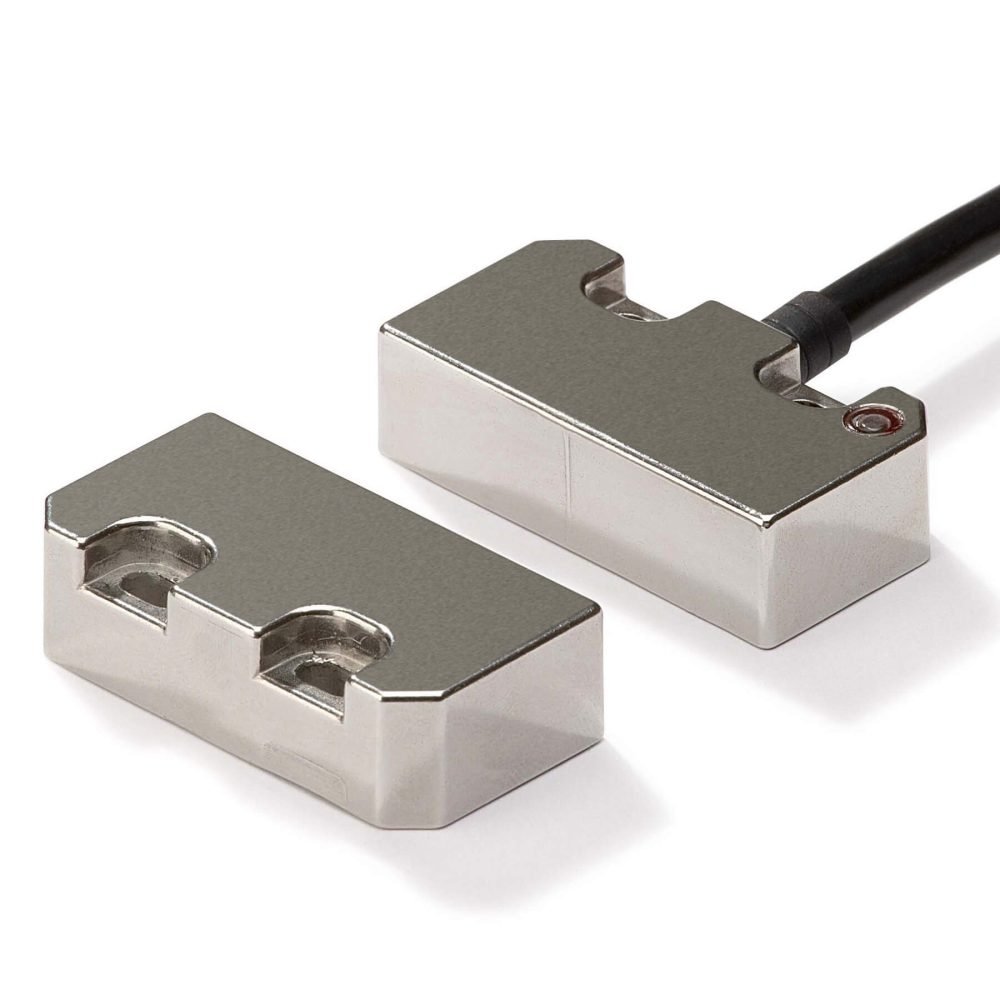

F3S-TGR-NSMC-20-10
| Model No | F3S-TGR-NSMC-20-10 |
|---|---|
| SKU | AA020788C |
| Category | Safety Switches |
Specifications
| Rated operation current Ie at AC-15, 230 V | 0 A |
|---|---|
| Rated operation current Ie at DC-13, 230 V | 0 A |
| Housing material | Metal |
| Suitable for safety functions | Yes |
| Coating housing | Other |
| With status indication | Yes |
| Type of switching contact | Other |
| Type of interface for safety communication | None |
| Type of electric connection | With cable preassembled |
| Explosion safety category for gas | None |
| Explosion safety category for dust | None |
| Construction type housing | Cuboid |
| Degree of protection (IP) | Other |
| Forced opening | No |
| Number of safety auxiliary contacts | 0 |
| Type of interface | None |
| Rated operation current Ie at AC-15, 125 V | 0 A |
| Rated operation current Ie at AC-15, 24 V | 0 A |
| Rated operation current Ie at DC-13, 125 V | 0 A |
| Rated operation current Ie at DC-13, 24 V | 0.2 A |
| Width sensor | 25.5 mm |
| Height of sensor | 14 mm |
| Length of sensor | 50 mm |
| Ambient temperature during operating | -25 u00b0C |
| Number of contacts as normally closed contact | 2 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
