OMRON
SKU: S8NR6000B
On Order

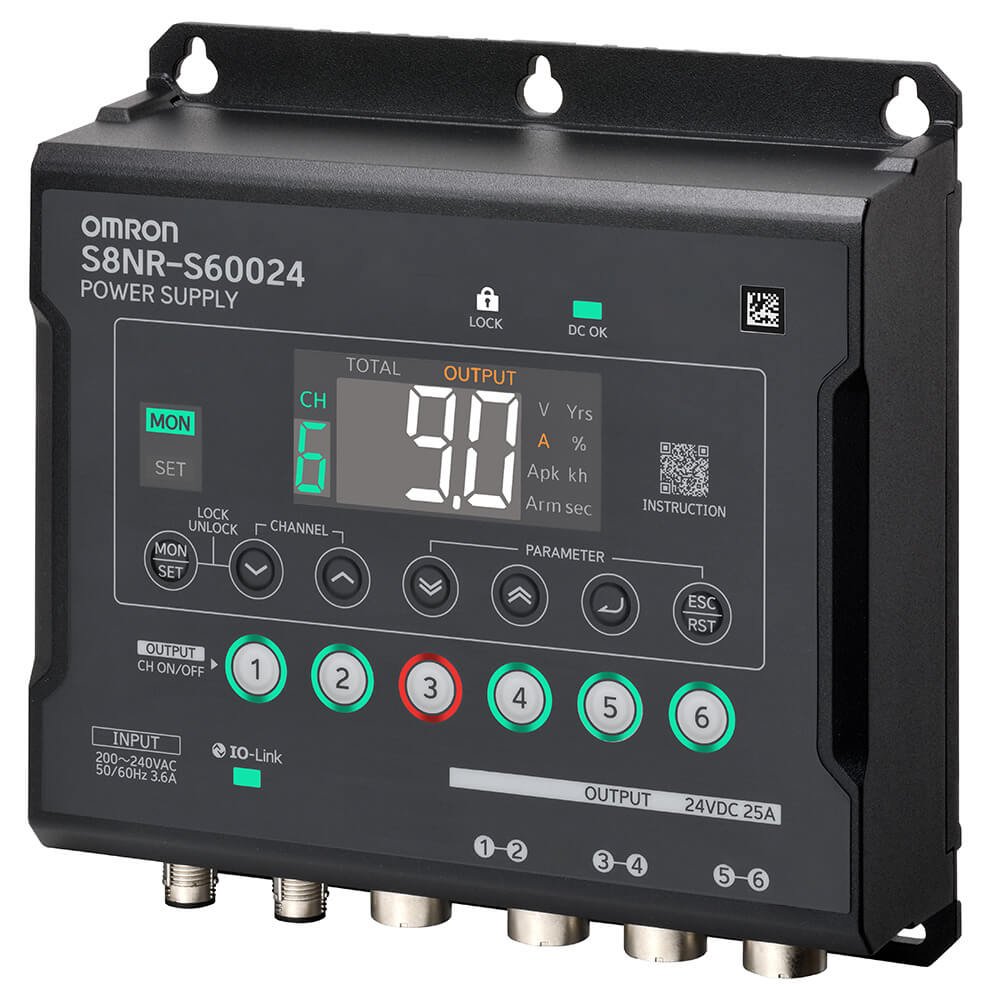

S8NR-S60024-A0L3-IL3
| Model No | S8NR-S60024-A0L3-IL3 |
|---|---|
| SKU | S8NR6000B |
| Category | Power Supplies |
Specifications
| Width | 181 mm |
|---|---|
| Height | 183 mm |
| Depth | 58.7 mm |
| Built-in height | 183 mm |
| Power consumption | 640 VA |
| Suitable for wall mounting | Yes |
| Built-in width | 181 mm |
| Suitable for distribution board | No |
| Suitable for safety functions | No |
| Width in number of modular spacings | 10.3 |
| Voltage type (supply voltage) | AC |
| Power output | 600 W |
| Output voltage stabilized | Yes |
| Type of electric connection | Other |
| Suitable for rail mounting | No |
| Stabilized | Yes |
| Degree of protection (IP) | IP67 |
| Direct mounting possible | Yes |
| 1st secondary output voltage | 24 V |
| 2nd secondary output voltage | 24 V |
| 3rd secondary output voltage | 24 V |
| Secondary voltage adjustable | Yes |
| Rated supply voltage AC 50 Hz | 200 V |
| Rated supply voltage AC 60 Hz | 200 V |
| Short-circuit-proof | Yes |
| Performance level according to EN ISO 13849-1 | None |
| Max. output current 1 | 10 A |
| Max. output current 2 | 10 A |
| Max. output current 3 | 10 A |
| Nominal value output voltage 1 | 24 V |
| Nominal value output voltage 2 | 24 V |
| Nominal value output voltage 3 | 24 V |
| Nominal value output current 1 | 10 A |
| Nominal value output current 2 | 10 A |
| Nominal value output current 3 | 10 A |
| SIL according to IEC 61508 | None |
| Degree of protection (NEMA) | Other |
Technical data supplied by OMRON and classified to ETIM 10.
Get a price Request a quote for S8NR-S60024-A0L3-IL3 Name, company, email, phone and your quantity — our team replies with cost, lead time and availability. Open form
Pricing is issued per enquiry. Send us the details and our technical team will respond with cost, lead time and availability.
