OMRON SKU: S8VKT24024 On Order

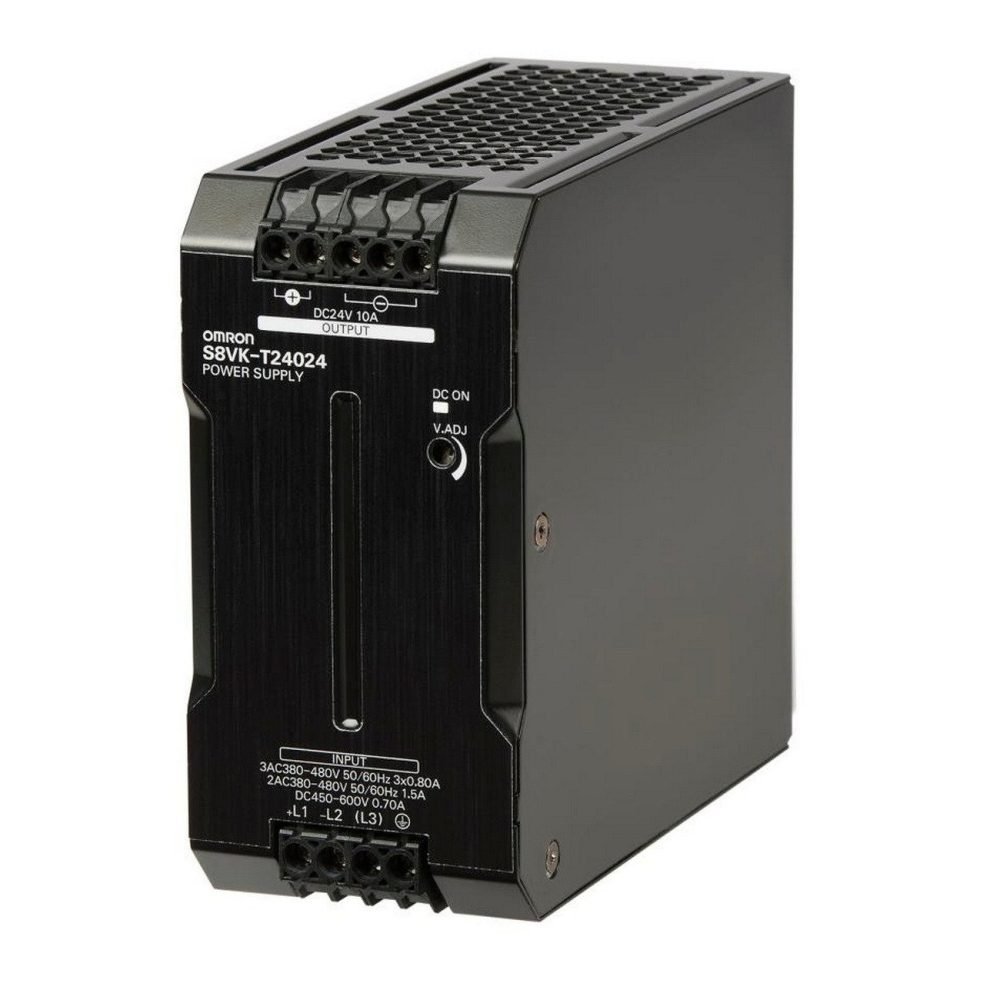

S8VK-T24024 – Kitap tipi güç kaynağı, PRO, 3 faz, 240 W, 24VDC, 10 A, DIN ray montaj

S8VK-T24024

Model No	S8VK-T24024
SKU	S8VKT24024
HS Code	8504.4083.90
Category	Power Supplies

Download Datasheet (EN)

Description

Kitap tipi güç kaynağı, PRO, 3 faz, 240 W, 24VDC, 10 A, DIN ray montaj

Specifications

Model No	S8VK-T24024
SKU	S8VKT24024
HS CODE	8504.4083.90
DATA SHEET	Datasheet (EN)

Specifications

Product Type	Kitap tipi Power Supply
Power	240 W
Supply Voltage	24VDC
Current	10 A
Width	60 mm
Height	125 mm
Depth	140 mm
Built-in height	125 mm
Power consumption	478 VA
Suitable for wall mounting	No
Built-in width	60 mm
Suitable for distribution board	No
Suitable for safety functions	No
Width in number of modular spacings	3.4
Voltage type (supply voltage)	AC/DC
Power output	240 W
Output voltage stabilized	No
Type of electric connection	Screw connection
Suitable for rail mounting	Yes
Stabilized	No
Degree of protection (IP)	IP20
Direct mounting possible	No
1st secondary output voltage	21.6 V
Secondary voltage adjustable	Yes
Rated supply voltage AC 50 Hz	380 V
Rated supply voltage AC 60 Hz	380 V
Rated supply voltage DC	450 V
Short-circuit-proof	No
Performance level according to EN ISO 13849-1	None
Max. output current 1	10 A
Nominal value output voltage 1	24 V
Nominal value output current 1	10 A
SIL according to IEC 61508	None
Degree of protection (NEMA)	Other

Technical data supplied by OMRON and classified to ETIM 10.

Features

PRO
3 faz
DIN ray mounting

Downloads

Datasheet (EN)
