OMRON
SKU: XS2CD4S2
On Order

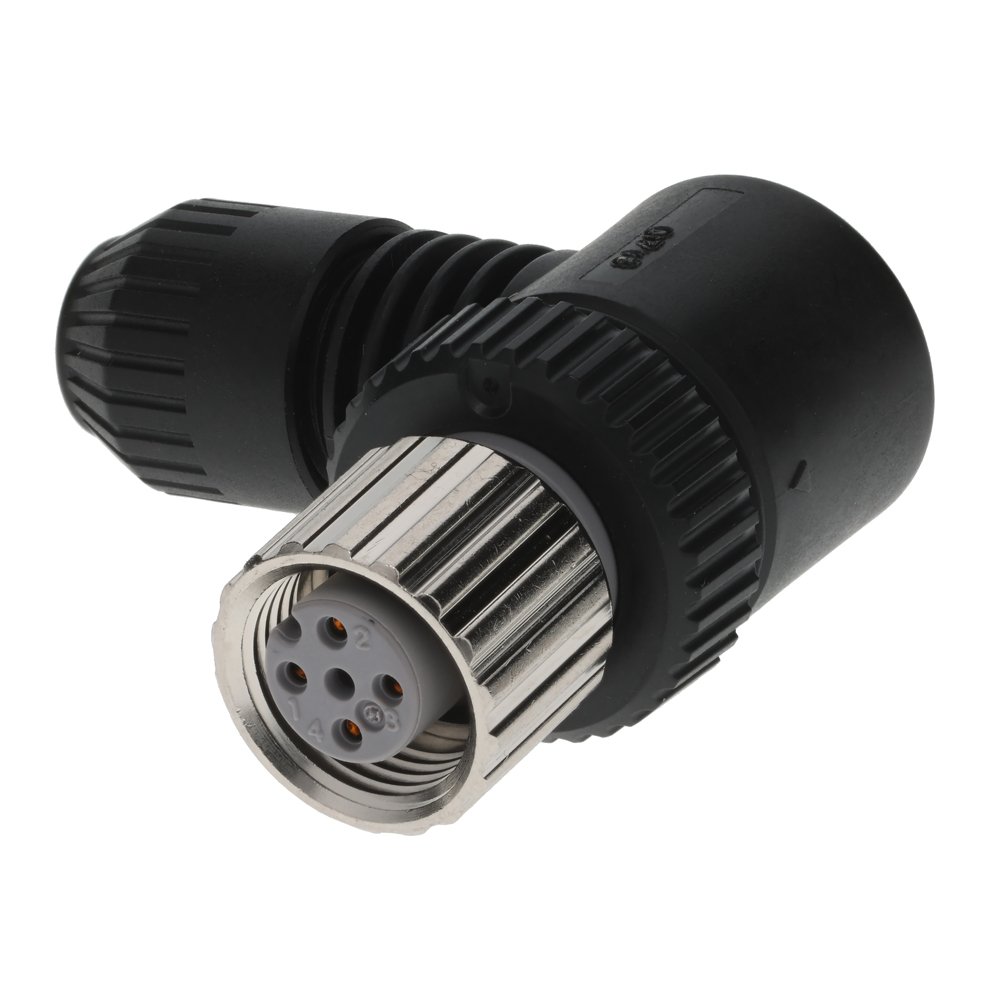

XS2C-D4S2 – M12 4-pin, Angled female screw connector, for 7-8mm cable
XS2C-D4S2
| Model No | XS2C-D4S2 |
|---|---|
| SKU | XS2CD4S2 |
| HS Code | 8544.4290.90 |
| Category | Connectors and Cordsets |
Description
M12 4-pin, Angled female screw connector, for 7-8mm cable
Specifications
| Model No | XS2C-D4S2 |
| SKU | XS2CD4S2 |
| HS CODE | 8544.4290.90 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | M12 4-pin |
|---|---|
| Type of locking | Gland nut |
| Rated voltage | 250 V |
| Screened | No |
| Contact type | Bus |
| Housing material | Plastic |
| Coating housing | None |
| With status indication | No |
| Ambient temperature | -25 u00b0C |
| Thread size (metric) | 12 |
| Type of electric connection | Screw connection |
| Material of contact surface | Gold |
| Overvoltage category | I |
| Pollution degree | 2 |
| Type of housing | Angled |
| Connectable conductor cross section solid-core | 0.18 mmu00b2 |
| Connectable conductor cross section fine-strand without cable end sleeve | 0.18 mmu00b2 |
| Connectable conductor cross section multi-wired | 0.18 mmu00b2 |
| Degree of protection (IP), mounted | IP67 |
| With protective conductor | No |
| Diameter connector | 20 mm |
| Rated current In | 4 A |
| For cable outer diameter | 5 mm |
| Min. number of insertion cycles | 200 |
| Number of power contacts | 4 |
| Number of control contacts | 4 |
| Number of data contacts | 4 |
| Material thread ring | Other |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- Angled female screw connector
- for 7-8mm cable
