OMRON
SKU: XS3FLM8PVC3A2M
On Order

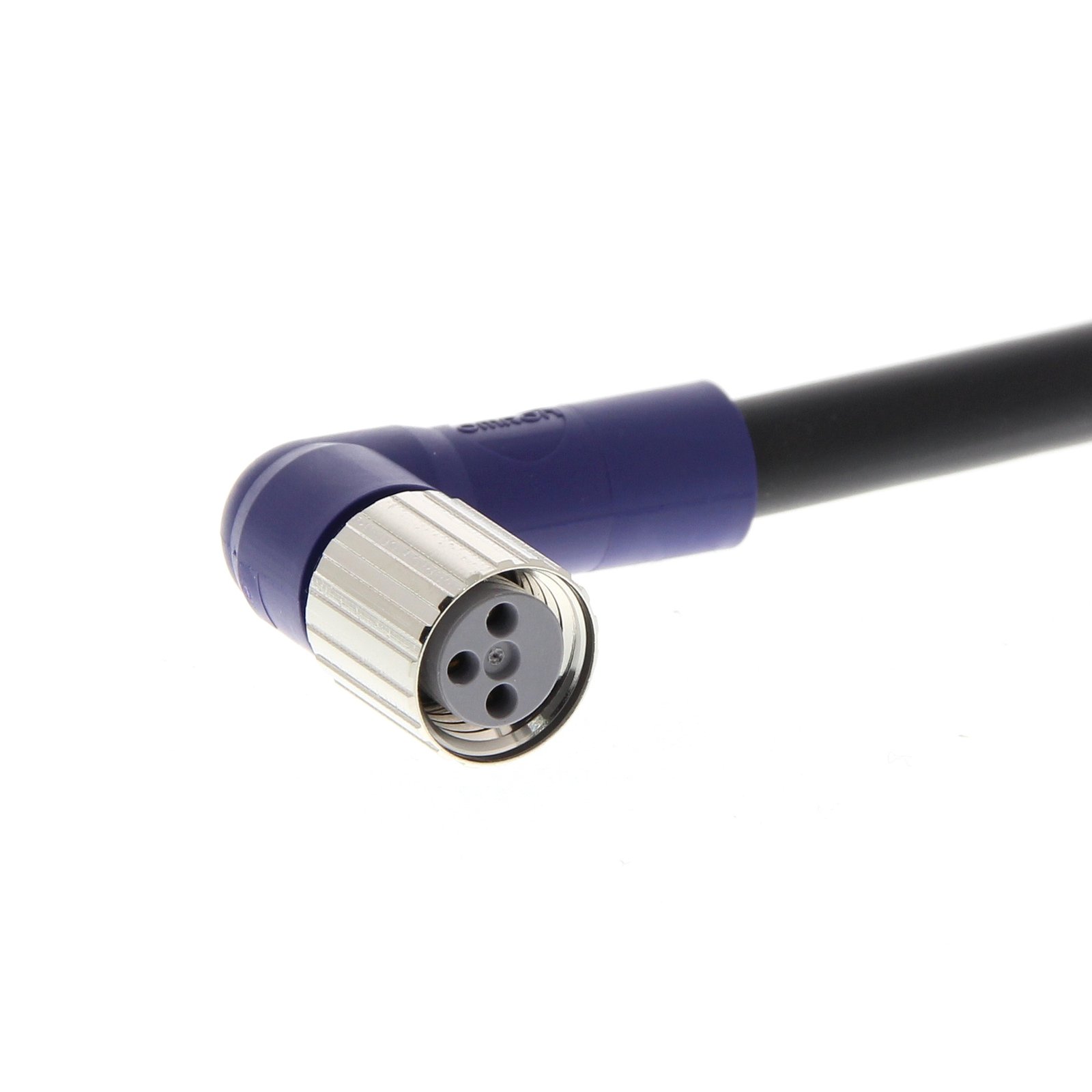

XS3F-LM8PVC3A2M – Sensör kablosu, M8, 3 kablolu, açılı dişi konnektör, PVC, 2m
XS3F-LM8PVC3A2M
| Model No | XS3F-LM8PVC3A2M |
|---|---|
| SKU | XS3FLM8PVC3A2M |
| HS Code | 8544.4290.90 |
| Category | Connectors and Cordsets |
Description
Sensör kablosu, M8, 3 kablolu, açılı dişi konnektör, PVC, 2m
Specifications
| Model No | XS3F-LM8PVC3A2M |
| SKU | XS3FLM8PVC3A2M |
| HS CODE | 8544.4290.90 |
| DATA SHEET | Datasheet (EN) |
Specifications
| Product Type | Sensor cable |
|---|---|
| Thread / Connector | M8 |
| Wiring | 3-wire |
| Halogen free | No |
| Cable type | Multi-core |
| Rated voltage | 125 V |
| Cable length | 2 m |
| Screened | No |
| Number of poles | 3 |
| Permitted cable outer temperature during assembling/handling | -25 u00b0C |
| Permitted cable outer temperature after assembling without vibration | -25 u00b0C |
| Continuity resistance | 40 mOhm |
| Material of contact surface | Nickel/gold |
| Vulcanized | No |
| Material of cable sheath | Polyvinyl chloride (PVC) |
| Degree of protection (IP) | IP67 |
| Type of electrical connection, box-sided | Free conductor end |
| Type of electrical connection, field-sided | M8 |
| Positioning cable feed, box-sided | Straight |
| Positioning cable feed, field-sided | Angled |
| With LED indication | No |
| Type of plug-in contact, field sided | Female (bus) |
| Material contact body | Other |
| Colour cable sheath | Black |
| Rated current In | 1 A |
Technical data supplied by OMRON and classified to ETIM 10.
Features
- açılı dişi connector
- PVC
- 2m
