OMRON
SKU: XS3F0282C
On Order

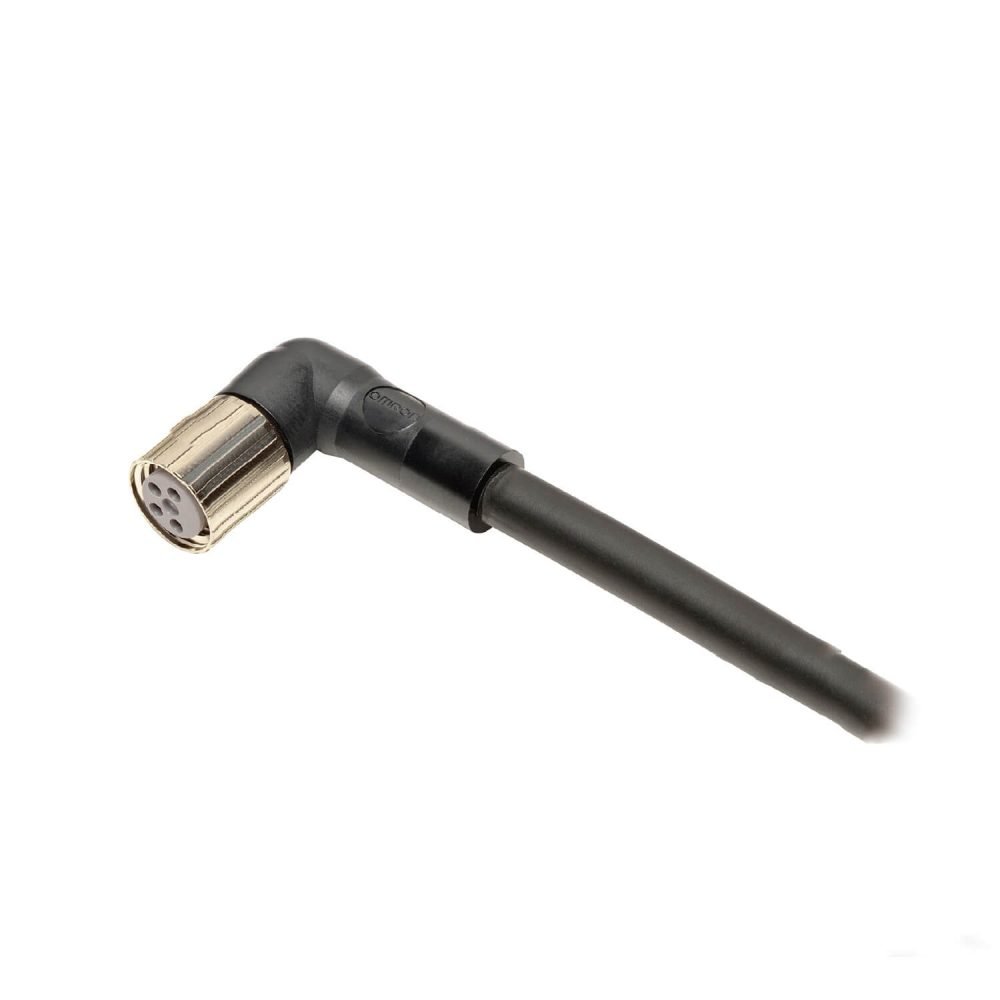

XS3F-LM8PVC3A5M CHN
| Model No | XS3F-LM8PVC3A5M CHN |
|---|---|
| SKU | XS3F0282C |
| Category | Connectors and Cordsets |
Specifications
| Halogen free | No |
|---|---|
| Cable type | Multi-core |
| Rated voltage | 125 V |
| Cable length | 5 m |
| Screened | No |
| Number of poles | 3 |
| Permitted cable outer temperature during assembling/handling | -25 u00b0C |
| Permitted cable outer temperature after assembling without vibration | -25 u00b0C |
| Continuity resistance | 40 mOhm |
| Material of contact surface | Nickel/gold |
| Vulcanized | No |
| Material of cable sheath | Polyvinyl chloride (PVC) |
| Degree of protection (IP) | IP67 |
| Type of electrical connection, box-sided | Free conductor end |
| Type of electrical connection, field-sided | M8 |
| Positioning cable feed, box-sided | Angled |
| Positioning cable feed, field-sided | Angled |
| With LED indication | No |
| Type of plug-in contact, field sided | Female (bus) |
| Material contact body | Other |
| Colour cable sheath | Black |
| Rated current In | 1 A |
Technical data supplied by OMRON and classified to ETIM 10.
Get a price Request a quote for XS3F-LM8PVC3A5M CHN Name, company, email, phone and your quantity — our team replies with cost, lead time and availability. Open form
Pricing is issued per enquiry. Send us the details and our technical team will respond with cost, lead time and availability.
